E - Lub Tester

Product Description

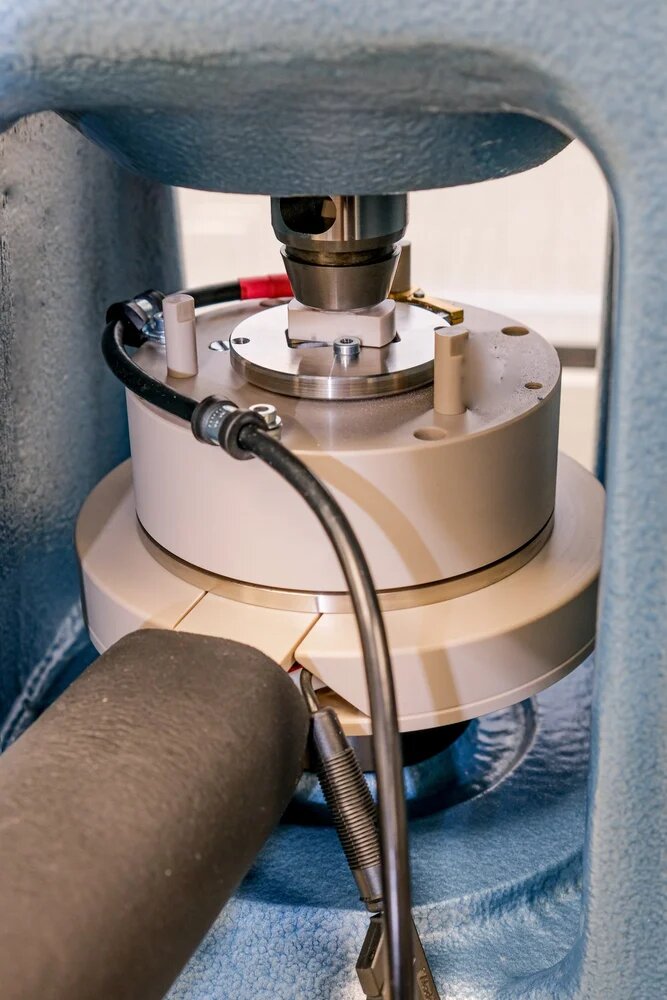

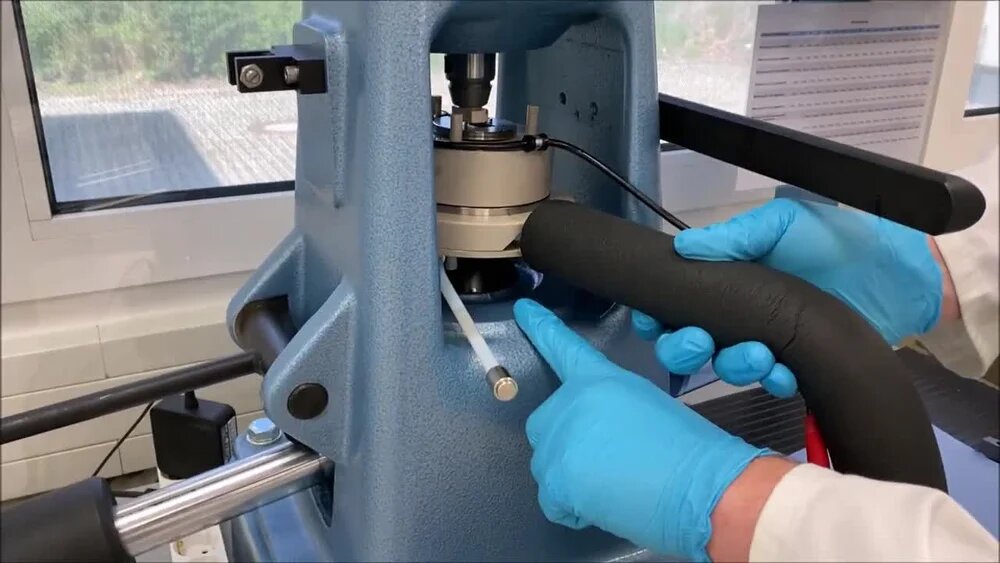

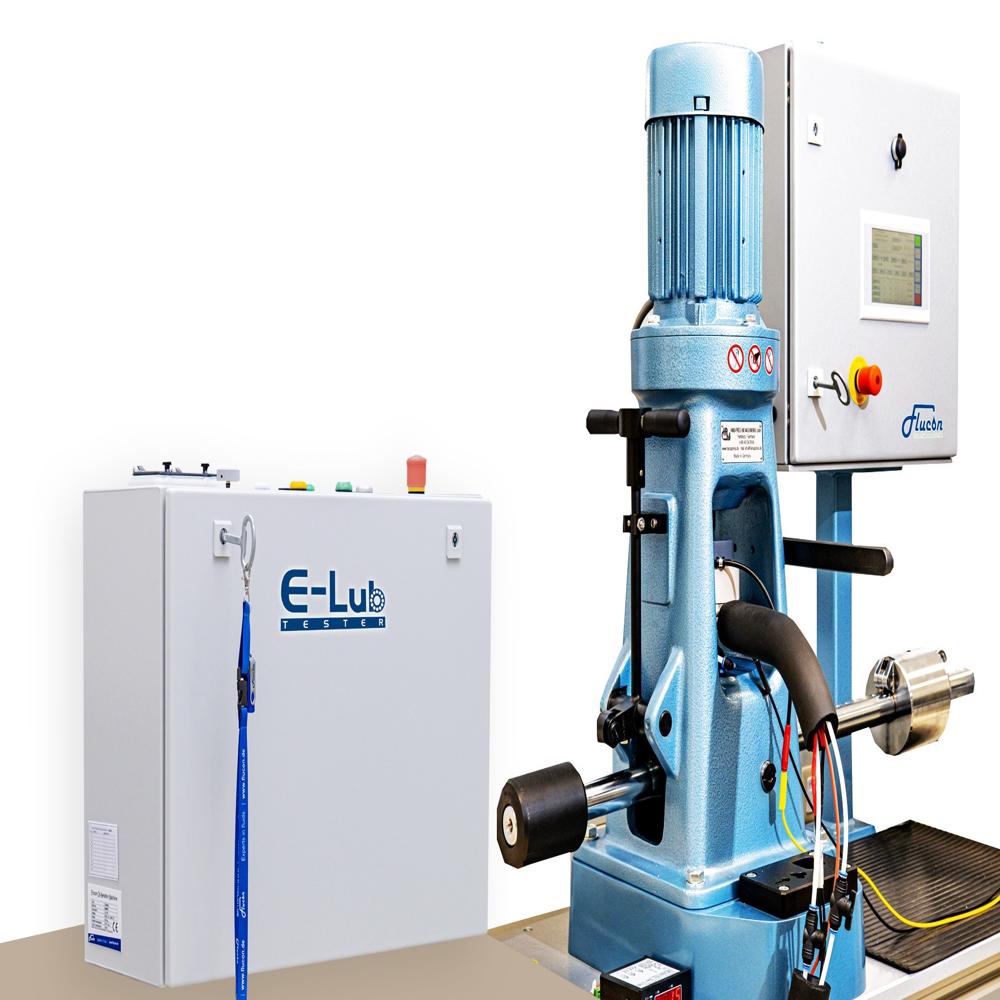

TheE-Lub Testerdetermines the ohmic resistance and capacitance of your rolling bearing, thus of the lubricant used therein, under real operating conditions applied by the FBT four-ball tester.

For this, a high-precision impedance measurement is used, which was developed based on flucons EPSILON+ laboratory instrument.

In addition, the E-Lub Tester enables EDMbreakdown currentsto be analyzed under a defined electrical load on the bearing so that the performance of greases and oils in rolling bearings can be specifically investigated under variable operating conditions (lubricant temperature, speed, load).

Key features

• determination of the lubricant impedance in rolling bearings
• suitable for axial roller bearings (type 51208) and radial ball bearings (type 6008)
• determination of ohmic resistance and capacitance
• EDM analysis (short-circuit-Scan): measurement of electrical breakdowns and ohmic currents during operation
• variable operating parameters: E-Lub Tester: lubricant temperature (automatic control), electrical load (common-mode voltage); FBT: running time, speed, load (all relevant data is stored in the program)
• automated measuring programs
• includes intuitive software for control and measurement with a Windows PC
• includes impedance calibrator
